Dynmap Integration¶

Factions integrates with Dynmap to automatically create visual representations of faction territories on the Dynmap web interface. It provides real-time territory visualization with customizable styling and detailed faction information popups.

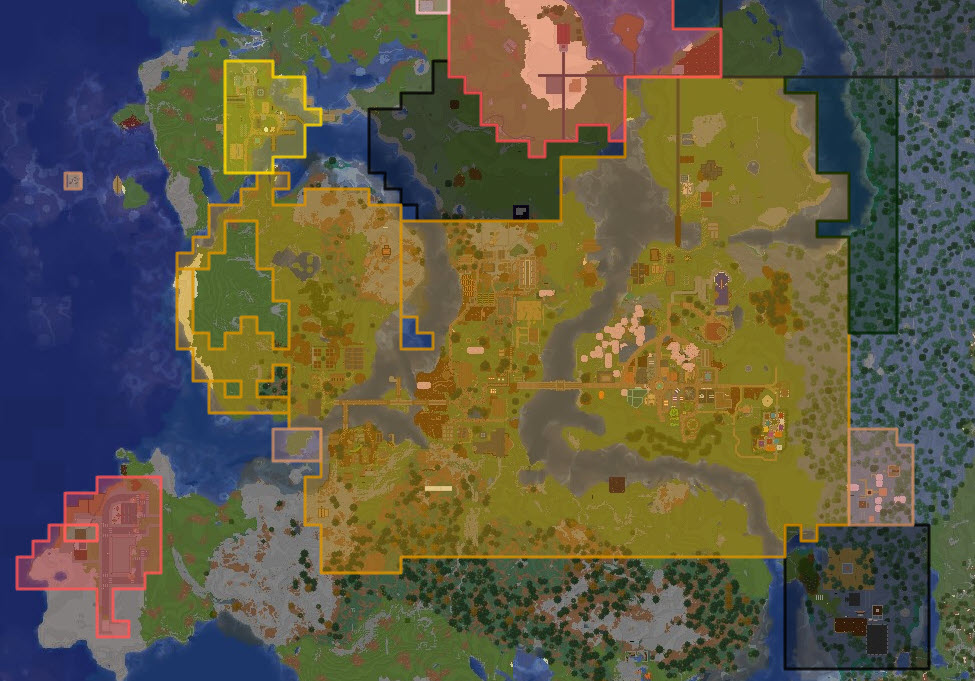

Dynmap Screenshot

Note

For more information about Dynmap, visit their plugin listing page or Wiki.

Shared configuration

Most map-related settings are shared across all map integrations (Dynmap, BlueMap, SquareMap, and Pl3xMap). Only dynmapEnabled and dynmapLogTimeSpent are specific to Dynmap. The shared settings use the map* prefix and are documented below; changing them affects all enabled map integrations.

Features¶

Territory Visualization¶

Area Markers: Faction territories displayed as colored polygonal areas
Multi-World Support: Territories shown across all worlds with faction claims
Connected Territory Detection: Adjacent chunks automatically grouped into single polygons
Real-Time Updates: Territory changes reflected on the map within 15 seconds
Asynchronous Processing: Updates occur without impacting server performance

Faction Information Popups¶

When clicking on faction territory, detailed information is displayed:

Faction name and description
Leader and member list
Faction age and founded date
Bank balance (if economy integration enabled)
Faction flags in formatted tables
Custom information via macros

Visual Customization¶

Per-Faction Styling: Different factions can have unique colors and styles
Special Faction Styling: SafeZone and WarZone have distinct appearances
Line and Fill Properties: Customizable border/fill colors, opacity, line weight
Layer Management: Factions appear on dedicated map layer
Home Markers: Faction homes displayed with custom icons

Configuration¶

Dynmap-Specific Settings¶

Setting	Default	Description
`dynmapEnabled`	`true`	Enable/disable the Dynmap integration
`dynmapLogTimeSpent`	`false`	Log Dynmap update timing to console (debug)

Map Settings (Territory Layer)¶

These settings apply to Dynmap, BlueMap, and SquareMap. Only the territory (claims) layer is listed here; home and warps layers use the home/warps settings below.

Setting	Default	Description
`mapLayerName`	`"Factions"`	Name of the territory (claims) layer in the map's layer menu
`mapLayerHiddenByDefault`	`false`	Whether the territory layer is hidden when first loading the map
`mapLayerPriority`	`2`	Territory layer ordering priority (lower numbers appear first)
`mapLayerMinimumZoom`	`0`	Minimum zoom level before territory layer becomes visible (0 = always visible)
`mapTerritoryMaxY`	`320`	Maximum Y level for territory extrusion; Dynmap is 2D and does not currently use this.

Map Settings (Home Warp Layer)¶

Setting	Default	Description
`mapShowHomeWarp`	`false`	Enable/disable displaying Faction Homes on the map
`mapLayerNameHome`	`"Faction Homes"`	Name of the Faction Homes layer
`mapLayerHiddenByDefaultHome`	`true`	Whether the Faction Homes layer is hidden when first loading the map
`mapLayerPriorityHome`	`3`	Faction Homes layer ordering priority
`mapLayerMinimumZoomHome`	`0`	Minimum zoom level before Faction Homes layer becomes visible
`mapWarpHomeIcon`	`"redflag"`	Icon for Faction Homes. Dynmap: see `web/markers` folder for available icons

Map Settings (Other Warps Layer)¶

Setting	Default	Description
`mapShowOtherWarps`	`false`	Enable/disable displaying Faction Warps (non-home) on the map
`mapLayerNameWarps`	`"Faction Warps"`	Name of the Faction Warps layer
`mapLayerHiddenByDefaultWarps`	`true`	Whether the Faction Warps layer is hidden when first loading the map
`mapLayerPriorityWarps`	`4`	Faction Warps layer ordering priority
`mapLayerMinimumZoomWarps`	`0`	Minimum zoom level before Faction Warps layer becomes visible
`mapWarpOtherIcon`	`"greenflag"`	Icon for Faction Warps. Dynmap: see `web/markers` folder for available icons

Faction Information Display¶

The faction popup description is customizable using the mapDescriptionWindowFormat setting. It is standard HTML that supports various macros (placeholders) that will be replaced with real information about the faction:

Macro	Description
`%name%`	Faction name
`%description%`	Faction description
`%players%`	List of faction members
`%players.count%`	Number of players in the faction
`%players.leader%`	Faction leader name
`%power%`	Current Faction power
`%maxpower%`	Max Faction power
`%claims%`	Number of claimed chunks
`%age%`	How long the faction has existed
`%money%`	Faction bank balance
`%flags.table1%` - `%flags.table10%`	Faction flags in 1-10 column tables
`%flags.map%`	All faction flags as a map (flag: value)

Dynamic Flag Macros:

For each faction flag (like monsters, pvp, explosions, etc.), you can use:

%flagname.bool% - The boolean value (true/false) of if it is enabled/disabled
%flagname.boolcolor% - Boolean value with green/red color formatting
%flagname.color% - Flag name with green/red color formatting

Flag Table System:

The %flags.tableX% macros automatically arrange all faction flags into columns separated with a pipe delimiter |. For example:

%flags.table1% creates a single-column list
%flags.table3% creates a 3-column list (default used in template)
%flags.table5% creates a 5-column list for more compact display

The default configuration displays flags with color coding (it uses the %flagname.boolcolor% macro). The setting mapUseDarkModeColors toggles brighter green/red for dark map themes.

Default Description Template:

The description template uses HTML (setting mapDescriptionWindowFormat):

<div class='infowindow'>
  <div>
    <div style='font-weight: bold; font-size: 150%;'>%name%</div>
  </div>
  <div style='margin-bottom:7px;padding-bottom: 7px;border-bottom: 1px solid gray;'>
    <div style='font-style: italic; font-size: 110%;'>%description%</div>
  </div>
  <div>
    <div><strong>Leader:</strong> %players.leader%</div>
    <div><strong>Members:</strong> %players%</div>
  </div>
  <div style='margin-bottom:7px;padding-bottom: 7px;border-bottom: 1px solid gray;'>
    <div><strong>Age:</strong> %age%</div>
    <div><strong>Bank:</strong> %money%</div>
  </div>
  <div>
    <div style='font-weight: bold;'>Flags:</div>
    <div>%flags.table3%</div>
  </div>
</div>

Visibility Control¶

Setting	Description
`mapVisibleFactions`	Faction names/UUIDs to show (empty = show all). Use `world:<worldname>` to show all factions in a world
`mapHiddenFactions`	Faction names/UUIDs to hide. Use `world:<worldname>` to hide a world
`mapShowMoneyInDescription`	Enable the `%money%` macro (requires thread-safe economy)
`mapUseDarkModeColors`	Use brighter green/red in description for dark map themes

World-Specific Visibility:

Add world:<worldname> to show/hide all factions in a specific world
Faction specification supports both names and UUIDs

{
  "mapVisibleFactions": ["MyFaction", "world:survival"],
  "mapHiddenFactions": ["TempFaction", "world:creative"]
}

Visual Styling¶

Default Style¶

By default, factions use either the Faction default colors or the map default colors. The primary color is used as the fill color, and the secondary color is used as the line color.

mapDefaultLineColor / mapDefaultFillColor: Optional hex overrides (e.g. "#00FF00"). If null/empty, the defaultFactionSecondaryColor and defaultFactionPrimaryColor from the main Factions config will be used instead.
mapUseFactionColors: When true, territory colors come from the faction's colors (set via /f color). When false, only the map defaults and per-faction overrides are used.

Global default line/fill opacity, line weight, and boost are defined in mapDefaultStyle. This object cannot be edited with /f config; edit mstore/factions_mconf/instance.json directly if you need to change default opacity or weight.

Per-Faction Overrides¶

The mapFactionStyleOverrides setting allows overriding style for specific factions. These overrides take precedence over faction colors and map defaults.

This setting cannot be configured with the /f config command - it must be edited manually in the mstore/factions_mconf/instance.json file.

Note

Comments have been added in the example below to explain values; do not add comments in your actual JSON file or it may cause errors.

{
  "mapFactionStyleOverrides": {
    "MyFactionName": { // The name of the faction - spelling must be exact
      "lineColor": "#0000FF", // The border color of faction territory
      "fillColor": "#0000FF", // The fill color of faction territory (inside the border)
      "lineOpacity": 1.0, // The opacity of the border
      "fillOpacity": 0.5, // The opacity of the fill (inside the border)
      "lineWeight": 3, // The thickness of the border line
      "boost": true // Whether to boost the faction layer to be on top of other layers
    }
  }
}

Default Special Faction Styles:

SafeZone and WarZone have built-in overrides (can be overridden again in mapFactionStyleOverrides):

"SafeZone": {
  "lineColor": "#FFAA00",
  "fillColor": "#FFAA00",
  "boost": false
},
"WarZone": {
  "lineColor": "#FF0000",
  "fillColor": "#FF0000",
  "boost": false
}

Advanced Configuration¶

Custom Faction Description Template¶

Create rich HTML popups with custom styling using mapDescriptionWindowFormat. Example:

<div class="faction-popup">
  <h2 style="color: #4CAF50;">%name%</h2>
  <p style="font-style: italic;">%description%</p>

  <div class="faction-info">
    <table>
      <tr><td><b>Leader:</b></td><td>%players.leader%</td></tr>
      <tr><td><b>Members:</b></td><td>%players.count%</td></tr>
      <tr><td><b>Power:</b></td><td>%power%/%maxpower%</td></tr>
      <tr><td><b>Claims:</b></td><td>%claims%</td></tr>
    </table>
  </div>

  <div class="faction-flags">
    <h4>Faction Settings:</h4>
    %flags.table2%
  </div>

  <div class="faction-economy" style="margin-top: 10px;">
    <b>Bank Balance:</b> %money%
  </div>
</div>

Troubleshooting¶

Common Issues¶

Territories not showing:

Check dynmapEnabled is true
Verify Dynmap is properly installed and running
Check mapVisibleFactions and mapHiddenFactions settings
Ensure factions have claimed territory

Performance problems:

Enable dynmapLogTimeSpent to identify bottlenecks
Limit visibility with mapVisibleFactions or mapHiddenFactions
Check server console for error messages

Money not displaying:

Ensure economy plugin is thread-safe
Set mapShowMoneyInDescription to true
Verify Vault integration is working and enabled
Verify faction banks are enabled and permissions are correct

Wrong colors/styles:

Verify faction colors (if mapUseFactionColors is true)
Verify faction names in mapFactionStyleOverrides match exactly
Check for typos in color codes (must be valid hex, e.g. #RRGGBB)

Popups not showing information:

Check mapDescriptionWindowFormat template syntax
Verify macros are spelled correctly
Test with a simple template first
Check browser console for JavaScript errors

Debug Options¶

Monitor update performance by setting dynmapLogTimeSpent to true in the config.
